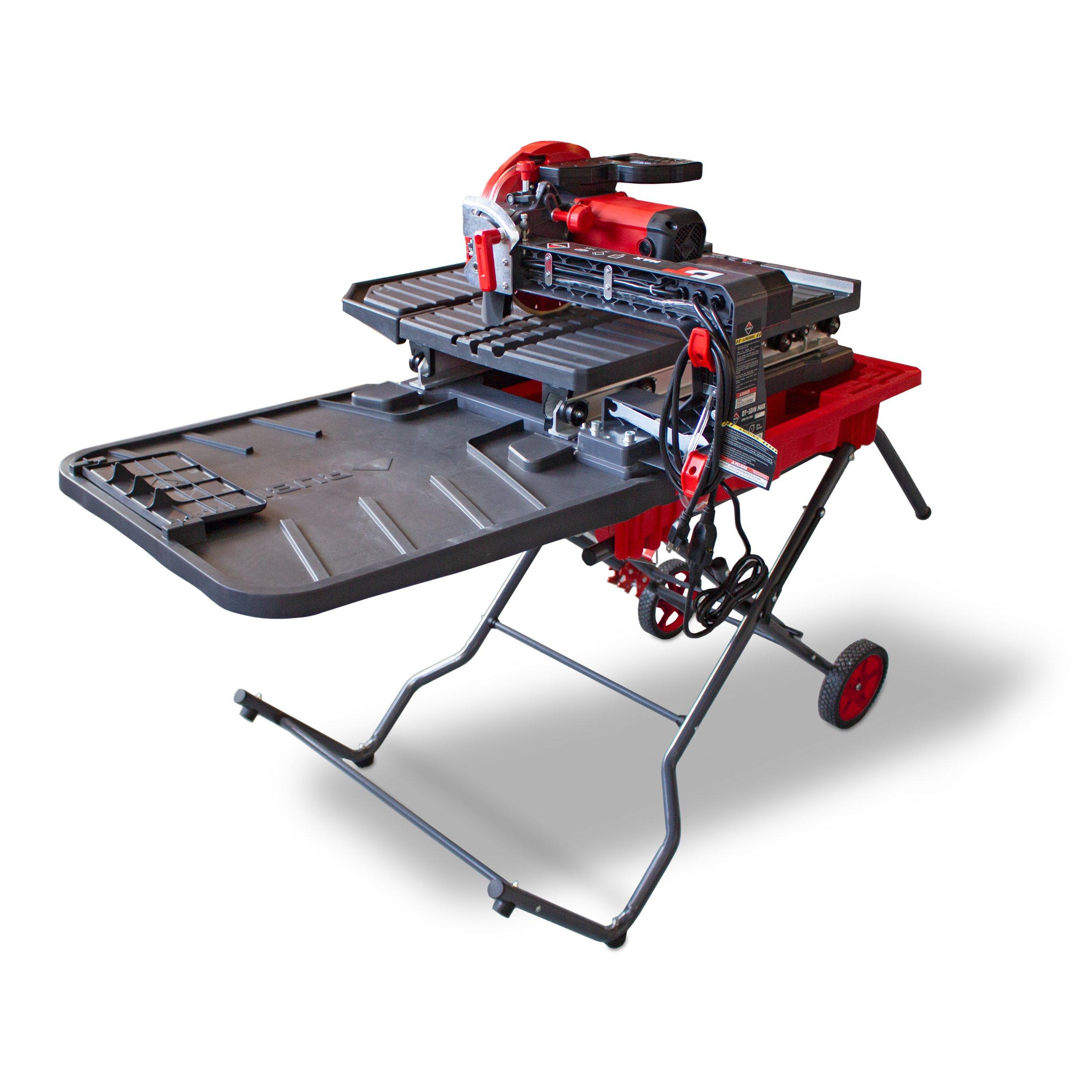

Rubi DT-10in. Max Tile Saw

The RUBI DT-10IN MAX electric cutter is a PREMIUM mobiletile saw suitable for cutting any type of ceramic, porcelain, pavers, and glass tile as well as natural stone.

The DT-10IN MAX is equipped with a 15A motor and a head with a miter saw that allows us to adjust the cutting height to the needs of the material. The head of the DT-10IN MAX tilts at 22.5 and 45 for miter cuts in materials up to 1.1" thick.


The design of the DT-10IN MAX includes a patented presision bearing table system with a maximum cutting length of up to 36" inches, which is equivalent to a maximum format diagonal cut of 25" inches.

The mobile table of the DT-10IN MAX is made of aluminum with a gripping rubber surface, for greaterdurability (resistance to oxidation) and greater lightness in the total assembly. It also incorporates a lateral extension that provides greater fixation and stability of the piece during the cut.

The DT-10IN MAX includes the exclusive RUBI C3 PHYTON cooling system that optimizes the cooling of the blade, extending its useful life, and reducing the loss of water due to splashes. With an addedcapacity to the rear tray and the anti-splash rear guard, we not only manage to work in a cleaner environment but also increase the reuse of water, reducing the volume of downtime necessary to fill the tank.

The head of the RUBI DT-10IN MAX is also equipped with a tracer laser that helps align cuts and increases their precision and speed.

The DT-10IN MAX includes, as standard, a 10" inch diameter ARROWHEAD premium blade. This saw is especially recommended for cutting ceramic, porcelain, glass, and stone tile.

The 100 pounds weight of the DT-10IN MAX is very easy to transport, thanks to the folding stand, with a highly robust tubular steel structure and equipped with large wheels that facilitate mobility on any surface. Practically bring it anywhere!

Features & Benefits

• 36 rip and 25 square tile on diagonal.
• Powerful 15-amp motor to cleanly cut through the toughest tile.
• Advanced patented Python water spray system brings water directly to the cut for improved blade cooling. Includes the Rubi Zero Dust water spray capture system to bring the finest water particles back to the tank.
• Machine aluminum table with overhold glides along a patented rail system with the precision demanded by tile professionals.
• Large 5-gallon water tub separates sediment to extend pump life.
• Patented Easy-Ratchet stand locking system with quick release for fast setup.
• Plunge cut and Miter cut.
• Adjustable laser guide, lateral stop for repetitive cuts, side & rear tables extensions, 8 wheels and premium laser cut Arrowhead 10 Blade included

Specifications

• Amps: 15
• RPM: 4000
• Cutting length: 36
• Diagonal cutting length: 25
• Cutting height (straight): 3-1/2
• Cutting height (mitre): 7/8
• Dimensions: 63 X 36.8 X 48.4
• Net weight (saw + stand): 100 lbs
• Cord length: 6.7ft.
